• Name:Automatic one station heat press
• Model:HC-TA1-11
• Class:Machines > Heat press machine

Usage: Automatic one station heat press can print diomand, picture on T shirt, steel plate, medal, cloth, sweatshirt, bags, ceramic, such gift and promotional products.

Specification:

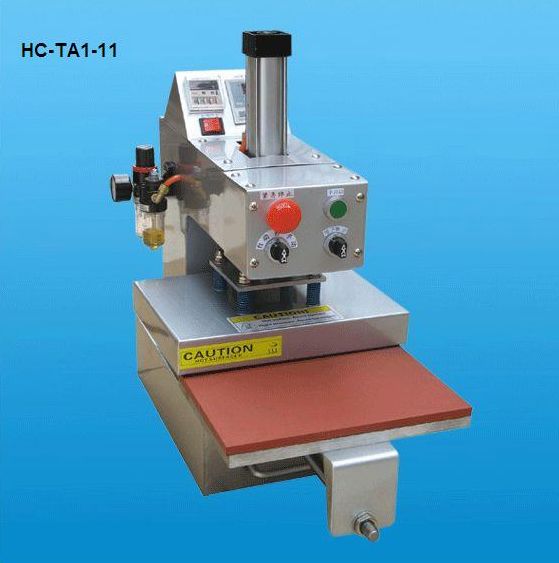

HC-TA1-11 Automatic heat press machine

1. 1)        Worktable size: 15*15 inch (380*380 mm)
2. 2)        Heat power: 2000-3500W
3. 3)        Max pressure: 100Kg
4. 4)        Temperature control: 0-399℃
5. 5)        Time control: 0-99seconds
6. 6)        Net weight: 90 Kg

HC-TA1-1519

1. 1)        Worktable size: 16*20 inch (400*500 mm)
2. 2)        Heat power: 2000-3500W
3. 3)        Max pressure: 100Kg
4. 4)        Temperature control: 0-399℃
5. 5)        Time control: 0-99seconds
6. 6)        Size: 1500*700*1650mm
7. 7)        Net weight: 100 Kg

HC-TA1-1523

1. 1)        Worktable size: 16*23 inch (400*600 mm)
2. 2)        Heat power: 2000 W
3. 3)        Max pressure: 100Kg
4. 4)        Temperature control: 0-399℃
5. 5)        Time control: 0-99seconds
6. 6)        Size: 1600*800*1750mm
7. 7)        Net weight: 130 Kg

Feature：

1. 1)        Fully automatic heat transfer machine with one drawing work table, it was improved by former one station heat press, performance is better.
2. 2)        Manual and automatic printing modes make operate more flexible.
3. 3)        Automatic drying worktable makes working smoothly and save labor.
4. 4)        Print pressure can be fine adjusted, and it’s stable during pressing.
5. 5)        Teflon coated heating plate make transfer paper easy detach from heating head.
6. 6)        Electro LCD temperature controller control temperature accurately, tolerance ±1℃.
7. 7)        Heatproof silicon foam is durable, and high temperature resistant 400 degrees won’t form.

Power Supply: 220V/110V, 50/60HZ

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time:      Within 5 days when get buyer’s payment or deposit

Shippment:    By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty:        one year

Packing:    　by wooden case

Packing size: 650*850*1750mm

Packing volume: 1 CBM

Gross weight: 150KG

Machine Fittings for free:

　　　　　　　One tool box

　　　　　　　Operation instruction in English

Customers:

　　　　ABCDE service ltd in South Africa

　　　　Professional gift items maker in Argentina

Suggestions by HC factory:

1. 1)        Please make sure there is ground wire when working.
2. 2)        Turn on the power, set up suitable print time, temperature and pressure, turn on the “manual” switch to test sample, turn on the “automatic” switch to start mass production once confirm the sample quality.
