Plane hot stamping machine
Plane hot stamping machine
  • Name:Plane hot stamping machine
  • Model:HC-H-811
  • Class:Machines > Hot stamping machine
Product Description:



Usage: Automatic hot stamping machine can print paper, card, invitation letter, wedding card, folder, plastics, leather, book cover, gift, wood, film, electronic products, etc. Large pressure makes suit for gilding and emboss on leather, plastic, wood, paper and metal such flat things.

Specification:

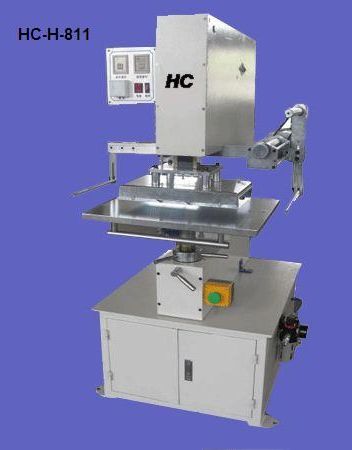

HC-H-811 pneumatic flat gilding machine

  1. 1)        Max print size: 8.2*11.4 inch (210*290 mm)
  2. 2)        Worktable size: 12.6*15.7 inch (320*400mm)
  3. 3)        Stroke of stamp head: 1.77 inch (45mm)
  4. 4)        Max print speed: 1100pcs/hr
  5. 5)        Foil feed: motor drive
  6. 6)        Printing temperature: 0 to 350
  7. 7)        Heating power: 1000W

HC-H-711 automatic plane gilding machine

  1. 1)        Max print size: 7.5*11.0 inch (190*280 mm)
  2. 2)        Worktable size: 12.6*15.7 inch (320*400mm)
  3. 3)        Stroke of stamp head: 1.77 inch (45mm)
  4. 4)        Max print speed: 1100pcs/hr
  5. 5)        Foil feed: motor drive
  6. 6)        Printing temperature: 0 to 350
  7. 7)        Heating power: 1000W

HC-H-119 automatic bronzing machine

  1. 1)        Max print size : 11.8*9.8 inch (300*250 mm)
  2. 2)        Worktable size: 12.6*15. 7 inch (320*400mm)
  3. 3)        Stroke of stamp head: 1.77 inch (45mm)
  4. 4)        Max print speed: 1100pcs/hr
  5. 5)        Foil feed: motor drive
  6. 6)        Printing temperature: 0 to 350
  7. 7)        Heating power: 1000W


Feature:

  1. 1)        Foil feeding and collecting automatically.
  2. 2)        Print pressure, temperature, speed and head height are adjustable.
  3. 3)        Stamping head up and down can be fine adjusted, to ensure precision printing.
  4. 4)        The stroke of worktable is adjustable which convenient to print different length of artwork.
  5. 5)        Rubber roller gets uniform heat transfer for large print size.

Power Supply: 110V/220V50/60HZ-1 PHASE

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyer’s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty: one year

Packing:     by wooden case

Packing size: 800 * 860 * 1600 mm

Packing volume: 1.1 CBM

Gross weight: 220KG

Machine Fittings for free:

  1. 1)      1pc Silicon rubber
  2. 2)      1pc tool box
  3. 3)      Operation instruction in English

Customers:

Brand four stars hotel in Finland

New fashion bags manufacture in Chile
