2 colors sealed cup pad printer

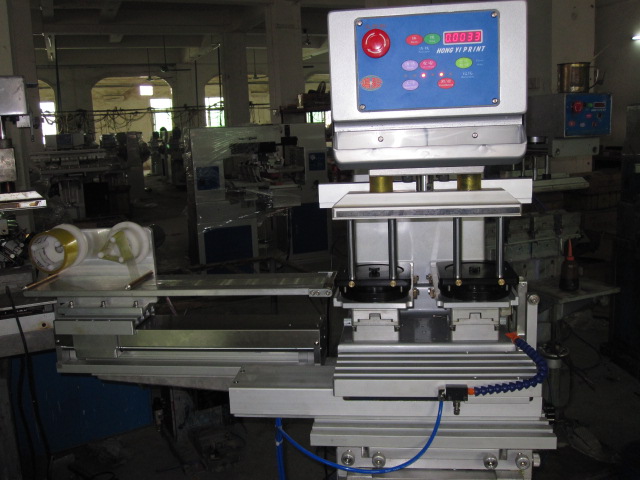

2 colors sealed cup pad printer
  • Name:2 colors sealed cup pad printer
  • Model:HC-P2-33C
  • Class:Machines > Ink cup pad printer
Product Description:

Usage: 2 colors sealed cup pad printer can print pen, key ring, electronics, cosmetics, leather, stationery, PP, PE, ABS, toys, glasses, metal, ceramic, electronics, promotional things, packing and gift products. Automatic shuttle working table make precision overprint, one colour and two colours printing is possible.

It can add auto cleaning device, to get more beautiful printing.



Specification:

HC-P2-33C  Two colours ink cup pad printer

  1. 1)        Max print size3.3*3.3 inch (85*85mm)
  2. 2)        Plate size3.9*8.7 inch (100*200mm)
  3. 3)        Diameter of ink cup: 3.5 inch (Φ90mm)
  4. 4)        Max print speed1000pcs/H
  5. 5)        Worktable size6.9*7.8 inch (170*200mm)
  6. 6)        Worktable stroke: 4.9 inch (125mm)
  7. 7)        Air consumption130 L/Min
  8. 8)        Print color1 or 2 colors

HC-P2-35C  Two colors sealed cup pad printer

  1. 1)        Max print size3.3*5.1 inch (85*130mm)
  2. 2)        Plate size3.9*9.8 inch (100*250mm)
  3. 3)        Diameter of ink cup: 3.5 inch (Φ90mm)
  4. 4)        Max print speed950pcs/H
  5. 5)        Worktable size6.9*7.8 inch (170*200mm)
  6. 6)        Worktable stroke: 4.9 inch (125mm)
  7. 7)        Air consumption130 L/Min
  8. 8)        Print color1 or 2 colors



HC-P2-36C  2 colours close cup pad printing machine

  1. 1)        Max print size3.3*6.7 inch (85*170mm)
  2. 2)        Plate size3.9*11.8 inch (100*300mm)
  3. 3)        Diameter of ink cup: 3.5 inch (Φ90mm)
  4. 4)        Worktable size6.9*7.8 inch (170*200mm)
  5. 5)        Max print speed900pcs/H
  6. 6)        Worktable stroke: 4.9 inch (125mm)
  7. 7)        Air consumption130 L/Min
  8. 8)        Print color1 or 2 colors



Power Supply220V/110V, 50/60HZ

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyer’s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty:  one year



Packing:   by wooden case

Packing size: 1300*700*1550MM

Packing volume: 1.4 CBM

Gross weight: 185KG



Machine Fittings for free:

  1. 1)  Two rubber pads
  2. 2)  Two ink cups
  3. 3)  Two steel plates
  4. 4)  One set. of tool box
  5. 5)  Operation instruction in English



Customers:

Ahan trading & souvenirs LLt in Macedonia

David technology co., in Belgium



Suggestions by HC factory:

  1. 1)  Please make ne fixture before pad printing, mixed putty and harder is economic and easy to do it by buyer.
  2. 2)  Accessories come with this machine as follows: plate, ink, thinner and rubber pad.






  3.
  4.  Please click here to see the video http://youtu.be/AlKCXktDXw8
