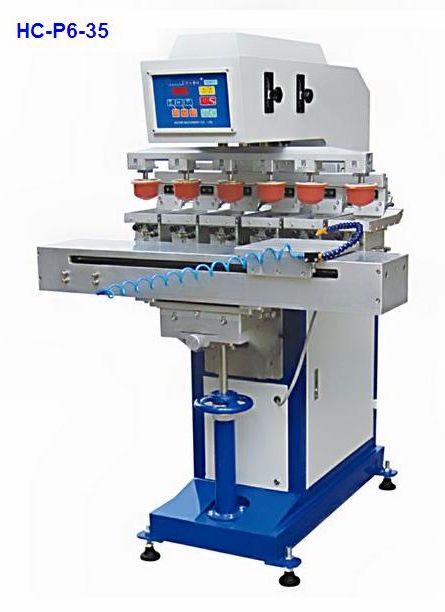

• Name:6-color pad printer with shuttle
• Model:HC-P6-35
• Class:Machines > Pad printer

Usage: Six colors pad printer with shuttle can print on leather, bottle cap, electronics, cosmetics, stationery, plastics, toys, glass, metal, ceramic, electronics, household Appliances, gift and promotional things.

Specification:

HC-P6-35   Six colors pad printer with shuttle

1. 1)        Max print size：3.3*5.1 inch (90*130mm)
2. 2)        Plate size：3.9*5.9 inch (100*150mm)
3. 3)        Max print speed：700pcs/H
4. 4)        Worktable size：6.7*7.8 inch (170*200mm)
5. 5)        Shuttle stroke: 4.9 inch (125mm)
6. 6)        Air consumption：169Liter/min(6bar)
7. 7)        Print color：6colors

HC-P6-37   Six-color pad printing machine with shuttle

1. 1)        Max print size：3.3*7.1 inch (85*180mm)
2. 2)        Plate size：3.9*7.8 inch (100*200mm)
3. 3)        Max print speed：700pcs/H
4. 4)        Worktable size：6.7*7.8 inch (170*200mm)
5. 5)        Shuttle stroke: 4.9 inch (125mm)
6. 6)        Air consumption：169Liter/min(6bar)
7. 7)        Print color：6colors

Features:

1. 1)        With shuttle work table, it can print 6 colours automatically at the same price.
2. 2)        Open inkwell is convenient to adjust and change plates.
3. 3)        Ink roller for ink applying is easy to remove and clean
4. 4)        Auto air drying clean the surface of article before printing, and dry inks quickly to overprint easily and precisely.
5. 5)        Micro computer control operation.
6. 6)        Counter to count printed quantity accurately.
7. 7)        Printing speed and worktable is adjustable.
8. 8)        Doctor blade pressure balance automatically.
9. 9)        It can print 6 colours, 5 colours, 4 colours, 3colours, 2 colours and single colour.

Power Supply︰220V/110V, 50/60HZ

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyer’s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty: one year

Packing:    by wooden case

Packing size: 1200*1000*1500mm

Packing volume: 1.8 CBM

Gross weight: 240KG

Machine Fittings for free:

1)      two doctor blades

2)      four steel plates

3)      One set of tool box

4)      Operation instruction in English

Customers:

Free thinking co., in USA

Smith machinery ltd in Peru

Kawai international trading co., in Kuwait
