• Name:4 colors pad printer with shuttle
• Model:HC-P4-35
• Class:Machines > Pad printer

Usage：4 colours pad printer with shuttle can print on leather, boll pen, key rings, electronics, cosmetics, stationery, plastics, toys, glass, metal, ceramic, electronics, etc.

4colors pad printer is widely print on gift, promotional, household Appliances, packing industry.

Specification:

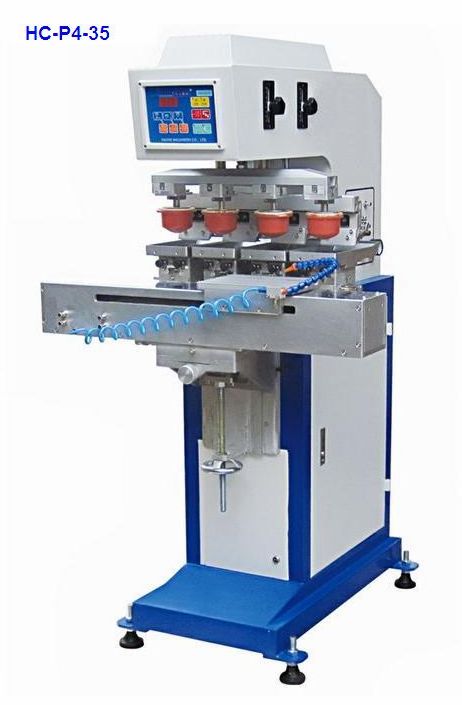

HC-P4-35   Four-color pad printing machine with shuttle

1. 1)        Max print size：3.3*5.1 inch (90*130mm)
2. 2)        Plate size：3.9*5.9 inch (100*150mm)
3. 3)        Max print speed：700pcs/H
4. 4)        Worktable size：5.9*5.1 inch (150*130mm)
5. 5)        Shuttle stroke: 4.9 inch (125mm)
6. 6)        Air consumption：7 bar
7. 7)        Print color：4colors

HC-P4-37   Automatic four colours pad printer

1. 1)        Max print size：33*7.1 inch (85*180mm)
2. 2)        Plate size：3.9*7.8 inch (100*200mm)
3. 3)        Max print speed：700pcs/H
4. 4)        Worktable size：5.9*5.1 inch (150*130mm)
5. 5)        Shuttle stroke: 4.9 inch (125mm)
6. 6)        Air consumption：7 bar
7. 7)        Print color：4colors

Features:

1. 1)        With shuttle work table and more precision overprint.
2. 2)        Open inkwell is convenient to adjust and change plates, other bigger size of plate can be installed to enlarge printing area.
3. 3)        Auto air drying clean the surface of article before printing, and dry inks quickly to overprint easily and precisely.
4. 4)        Ink roller for ink applying is easy to remove and clean.
5. 5)        Micro computer control operation.
6. 6)        Counter to count printed quantity accurately.
7. 7)        Printing speed and worktable is adjustable.
8. 8)        Doctor blade pressure balance automatically.
9. 9)        It can print 4 colors, 3 colors, 2 colors and single color.

Power Supply︰220V/110V, 50/60HZ

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyer’s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty: one year

Packing:  　by wooden case

Packing size: 1000*850*1480mm

Packing volume: 1.3 CBM

Gross weight: 230KG

Machine Fittings for free:

1. 1)      four rubber pads
2. 2)      four doctor blades
3. 3)      four steel plates
4. 4)      One set of tool box
5. 5)      Operation instruction in English

Customers:

Rapid printing factory in Egypt

Tech toys maker in U.A.E

Hassan tampo equipment in Dubai

Suggestions by HC factory:

1. 1）Please make ne fixture before pad printing, mixed putty and harder is economic and easy to do it by buyer.
2. 2）Accessories come with this machine as follows: steel plate, ink, thinner and rubber pad.
3.
4.                             　　Samples by 4 colours pad printer with shuttle:
5.
6.

S
