• Name:One colour pad printer
• Model:HC-P1-33
• Class:Machines > Pad printer

Usage: One colour pad printer can print pen, key ring, electronics, cosmetics, leather, stationery, plastics, toys, glass, metal, ceramic, electronics, etc.

1 color pad printing machine is widely prints on gift, promotional, packing field. Multi machines line up as flow production line to multi colors’ printing,

Specification:

HC-P1-33  　One colour pad printer

1. 1)        Max print size：3.4*3.4 inch (85*85mm)
2. 2)        Plate size：3.9*3.9 inch (100*100mm)
3. 3)        Max print size：1400pcs/H
4. 4)        Worktable size：4.5*7.8 inch (115*200mm)
5. 5)        Worktable stroke：4.9 inch (125mm)
6. 6)        Air consumption：130 L/Min
7. 7)        Print colour：1colour one time

HC-P1-53  　Stand-up one color pad printing machine

1. 1)        Max print size：5.3*3.35 inch (135*85mm)
2. 2)        Plate size：5.9*3.9 inch (150*100mm)
3. 3)        Max print size：1400pcs/H
4. 4)        Worktable size：4.5*7.8 inch (115*200mm)
5. 5)        The stroke of worktable：4.9 inch (125mm)
6. 6)        Air consumption：130 L/Min
7. 7)        Print colour：1colour one time

HC-P1-35

1. 1)        Max print size：3.3*5.3 inch (85*135mm)
2. 2)        Plate size：3.9*5.9 inch (100*150mm)
3. 3)        Max print size：1400pcs/H
4. 4)        Worktable size：4.5*7.8 inch (115*200mm)

HC-P1-55

1. 1)        Max print size：5.3*5.3 inch (135*135mm)
2. 2)        Plate size：5.9*5.9 inch (150*150mm)
3. 3)        Max print size：1400pcs/H
4. 4)        Worktable size：4.5*7.8 inch (115*200mm)

HC-P1-75

1. 1)        Max print size：7.2*5.3 inch (180*135mm)
2. 2)        Plate size：7.8*5.9 inch (200*150mm)
3. 3)        Max print size：1400pcs/H
4. 4)        Worktable size:4.5*7.8 inch (115*200mm)

Features:

1. 1)        Open inkwell is convenient to adjust and change plates, other bigger size of plate can be installed to enlarge printing area.
2. 2)        Ink roller for ink applying is easy to remove and clean.
3. 3)        Micro computer control operation.
4. 4)        Counter to count printed quantity accurately.
5. 5)        One color printed by one time, multi-color by multi times.
6. 6)        Print speed and worktable is adjustable.
7. 7)        Doctor blade pressure balance automatically.
8. 8)        Solenoid valve and pneumatic parts imported from Taiwan and Germany, running more stable and longer life.

Power Supply: 220V/110V, 50/60HZ

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyer’s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty:     one year

Packing:  　by wooden case

Packing size: 1050*620*1500mm

Packing volume: 1 CBM

Gross weight: 180KG

Machine Fittings for free:

1)      One rubber pad

2)      One doctor blade

3)      One steel plate

4)      One set. of tool box

5)      Operation instruction in English

Suggestions by HC factory:

1.    　1）Please make ne fixture before pad printing, mixed putty and harder is economic and easy to do it by buyer.
2.  　 2）Accessories come with this machine as follows: steel plate, ink, thinner and rubber pad.
3.   　3）Green hand could send picture or sample to us, so we can supply a professional complete printing solution including ink, fixture, rubber pads and finished plates.

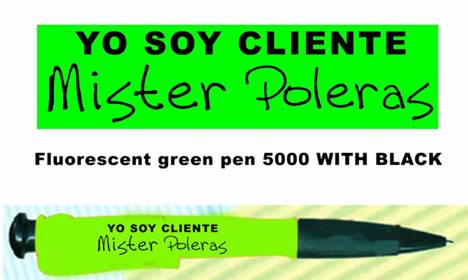

　　　　　　　Sample by HC-P1-33 one colour pad printer
