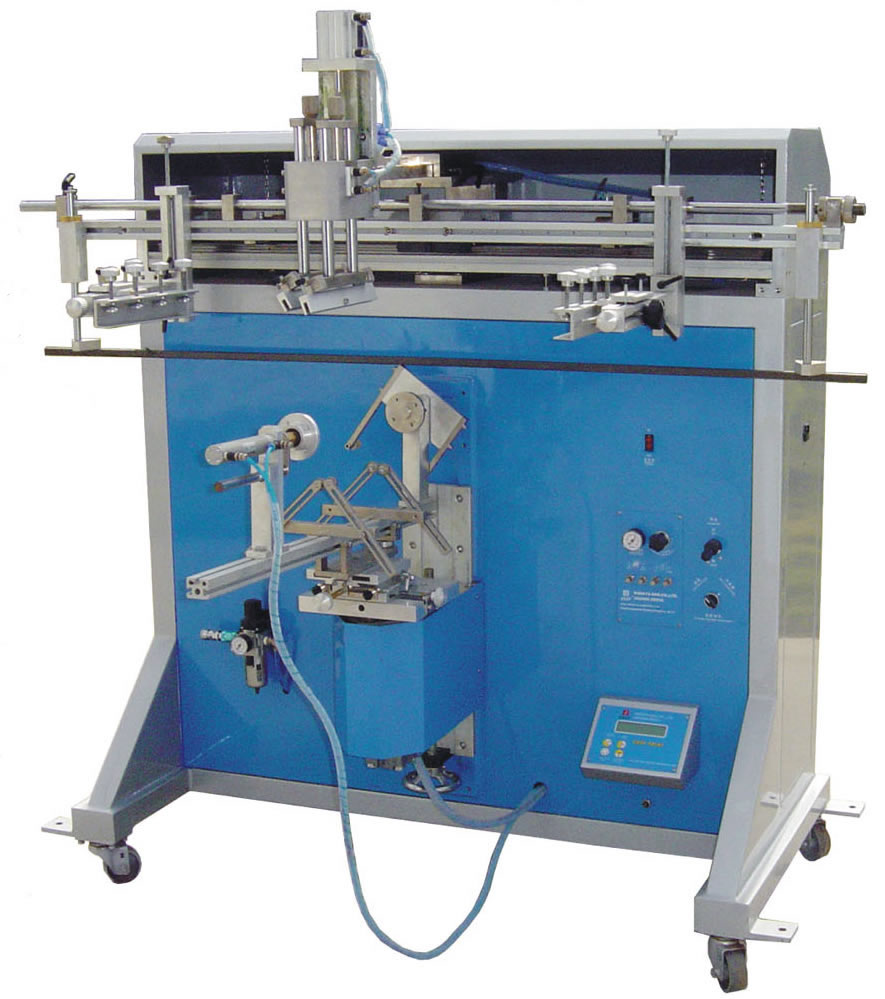

Semi automatic screen printer for bucket
Semi automatic screen printer for bucket
  • Name:Semi automatic screen printer for bucket
  • Model:HC-SC-1215
  • Class:Machines > Screen printer
Product Description:



Usage: Semi automatic screen printer can print on big round and conical objects, round products diameter within 380mm, e.g., plastic bucket, Mineral water bottles, glass, metal.. Cylinder screen printing machine is widely used in medical, cosmetic, tube packing industry globally.

Specification:

HC-SC-1215   Single color screen press

  1. 1)      Max print diameter: 15 inch(380mm)
  2. 2)      Max height: 20inch (500mm)
  3. 3)      Max size of screen frame: 49.2*19.6 inch(1250*500mm)
  4. 4)      Print precision: 0.0012 inch (0.03mm)
  5. 5)      Max print speed: 850pcs/H
  6. 6)      Air consumption: 3.5L per period
  7. 7)      Working air pressure: 5-5.5bar,0.5-0.55Mpa
  8. 8)      Total power: 30W
  9. 9)      Net weight: 580kg



Features:

  1. 1)        Pneumatic screen printing machine can print on big round and conical objects.
  2. 2)        It works stably and fast, easy to adjust.
  3. 3)        Ink scrape and return automatically, both of worktable and screen frame can adjust fine up and down, left and right, front and back, so get more precision print.
  4. 4)        Print route and print speed is adjustable as well, the auto balance of scraper ensure the balance of print pressure, so the printed object looks more beautiful.





Power Supply: 110V/220V50/60HZ-1 PHASEfor IR dryer



Payment Terms: T.T, PayPal, Western Union or L/C



Lead time: within 7 days when get buyer’s payment or deposit

Guaranty: one year





Packing:           by wooden case

Packing size: 1600×1300×1100mm

Packing volume: 2.3 CBM

Gross weight: 600KG





Machine Fittings for free:

1)        Squeegee one pc

2)        One jig

3)        One set. of tool box

4)        Operation instruction in English





Suggestions by HC factory:

  1. l)   Please make one set of fixture which including gear before screen printing.
  2. 2)   Accessories come with the machine as follows: ink, thinner, squeegees and screen plate.
  3. 3)   It can print one colour by one time, multi colours by multi times, only change screen plate and ink to overprint.



            Sample by HC-SC-1215 Round screen printer:





 Check the video how it printing at http://youtu.be/WcrMrMrzOVI
