• Name:Automatic flat screen printer
• Model:HC-SF-1119
• Class:Machines > Screen printer

Usage: Semi-automatic flat screen printer can print flat products, as paper, metal plate, panel, hardboard, film, light box, guide board, large poster, decorate glass, gift box, cigarette, wine box, such plane product. After screen printing with UV dryer, can finish UV special printing process including spot UV, frosting UV and shining powder UV.

Specification:

HC-SF-810   Semi-automatic flat screen printing machine

1. 1)      Max print size: 7.8*15.8 inch (200*400mm)
2. 2)      Max worktable size: 11.8*19.7 inch(300*500mm)
3. 3)      Max print speed: 1000pcs/H
4. 4)      Print thickness: 4.7 inch (120mm)
5. 5)      Print repeatability precision: 0.0012 inch(0.03mm)
6. 6)      Air consumption: 2.5L per cycle
7. 7)      Net weight: 480kg

HC-SF-1220   Automatic flat screen printing machine

1. 1)      Max print size:11.8*19.6 inch(300*500mm)
2. 2)      Max worktable size: 15.7*23.6 inch(400*600mm)
3. 3)  Max print speed: 1000pcs/H
4. 4)  Print thickness: 4.7 inch (120mm)
5. 5)  Print repeatability precision: 0.0012 inch(0.03mm)
6. 6)  Air consumption: 2.5L per cycle
7. 7)  Net weight: 480kg

HC-SF-1227   One color screen printer

1. 1)      Max print size:16*27inch(400*680mm)
2. 2)      Max worktable size: 18*28inch(450*700mm)
3. 3)      Max print speed: 1000pcs/H
4. 4)      Print thickness: 4.7 inch (120mm)
5. 5)      Print repeatability precision: 0.0012 inch(0.03mm)
6. 6)      Air consumption: 3L per cycle
7. 7)      Net weight: 520kg

HC-SF-2335      screen printer

1. 1)      Max print size: 23.6*35.4 inch (680*950mm)
2. 2)      Max worktable size: 27.5*39.3 inch (700*1000mm)
3. 3)      Max print speed: 1000pcs/H
4. 4)      Print thickness: 4.7 inch (120mm)
5. 5)      Print repeatability precision: 0.0012 inch(0.03mm)
6. 6)      Air consumption: 3.5L per cycle
7. 7)      Net weight: 550kg

Feature:

1. 1)        Flat screen press with 3 models including fully automatic, semi automatic and manual, flexible and convenient to choose according requirement.
2. 2)        PLC control from Germany, combined with servomotor and pneumatic drive to ensure perfect balance, human-computer interface, easy to operate.
3. 3)        Micro adjust device design is top in China, screen frame can fine adjust front and back, left and right, to satisfy accurate printing.
4. 4)        Printing stably and fast, and get accuracy fixed position, precision can reach 0.05mm，with low noise.
5. 5)        It with counter to count the printed quantity, easier to arrange mass production.
6. 6)        With safe protect system, in case urgency to force stop.
7. 7)        Print speed and print route can adjust unlimited.
8. 8)        Worktable can be accurate adjusted front and back, left and right, and be rotated some angle as well.

Power Supply︰220V/110V, 50/60HZ

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyer’s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty: one year

Packing:  by wooden case

Packing size: 1000*600*1750mm /1100*850*1750mm / 1350mm*950mm*1750mm

Packing volume: 1.3 /1.6/ 2.2 CBM

Gross weight: 500/540/570KG

Machine Fittings for free:

Squeegee one pc

One fixture

One set. of tool box

Operation instruction in English

Suggestions by HC factory:

1. 1) 1）Please make one fixture before screen printing, for plane body is very easy, you can DIY, like mark line on worktable or stick tape on it.
2. 2) 2）Accessories come with this machine as follows: screen plate, ink, thinner and squeegees.
3. 3) 3） It can print one color by one time, multi colors by multi times, only change screen plate and ink to overprint.
4. 4) 4） Lubricating oil should be covered on lubricate parts one time every month to maintain the machine.

S

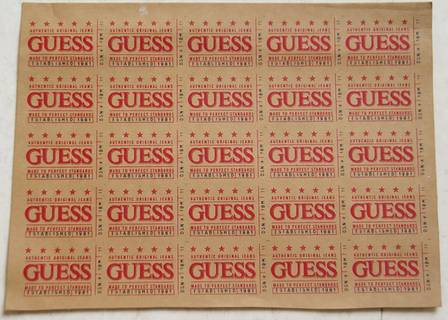

                                                Sample:
