Use: It use to dry LED UV ink on articles printed by screen printing, offset printing and pad printing.
LED UV dryer is more and more popular Nowdays,it have 5 features compares with traditional UV dryer.
1) It saves a lot of energy/Electricity.
2) Environmental protection, because LED does not produce ozone.
3) Good for health.
4) Longer life,20000hours.
5) No need to warm up/preheat.
Specification:
Light source type: surface light source

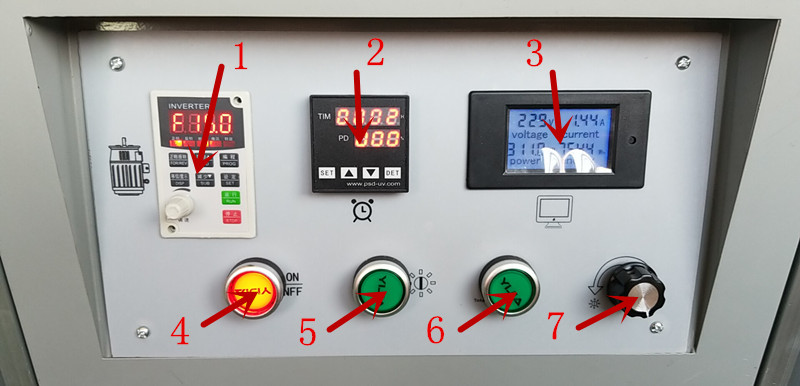

Control mode: button control, external control
Input voltage: AC 220V, 50Hz
Use lamp distance: 5mm ~ 15mm
Cooling method: water cooling
LED lamp hours: 20000H
Number of chips: 1440 pieces
Total length of the machine: 2000MM
Total width: 1200MM
Belt width: 1000MM
Total machine height (including lampshade): 1000MM
Distance between belt and ground: 850MM
Effective irradiation length: 1000MM
In-feed length & Out-feed length: adjustable
Max height of product: 4inch
Speed is adjustable: 5-35 meters per minute

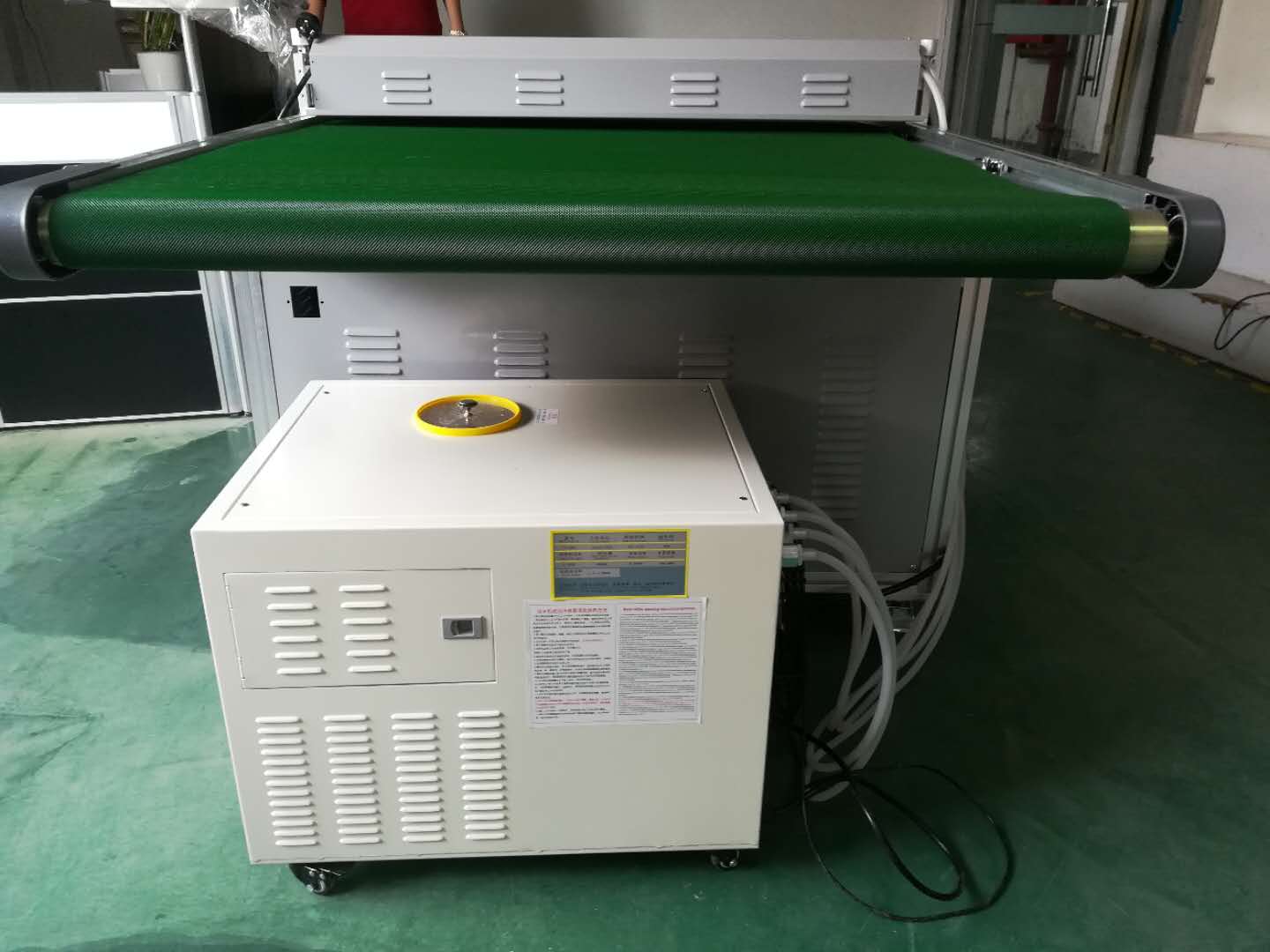

The machine comes with: 1pc industrial chiller, 1pc control box, LED lamp and lamp cover.
