Usage:
This low cost Desktop Cutting Plotter is designed for office and home use, it can cut sticker and decal vinyl, masking film for painting or etching, vinyl lettering, decorative scrapbooking papers, card stock, stencils, magnetic sheet, as well as all kinds of T-shirt heat transfer media like flex, flock, Magi Cut colored paper for garments.

It can work with Artcut, Flexi Sign, Signcut, WinPCsgin, SignBalzer, SignLab and etc, also we can supply Coreldraw plug-in dirver for this machine, it supports cutting out from Coreldraw directly.


Specification:

Control System	Risc Micro-controller
Drive Type	Stepper motor
Media Size (mm)	500
Cutting Size (mm)	400/600/1000
Cutting Speed	10-600MM/S(16 levels selectable)
Cutting Force	10-500g(38 levels selectable)
LCD Display	English
Resolution(DPI)	1000
Repeatability(mm)	0.01
Command	HPGL(DMPL)
Interface	USB2.0 / 232
Curve Smoothing	Yes
Cutting Test	Yes
Plotting Soft Landing	Yes

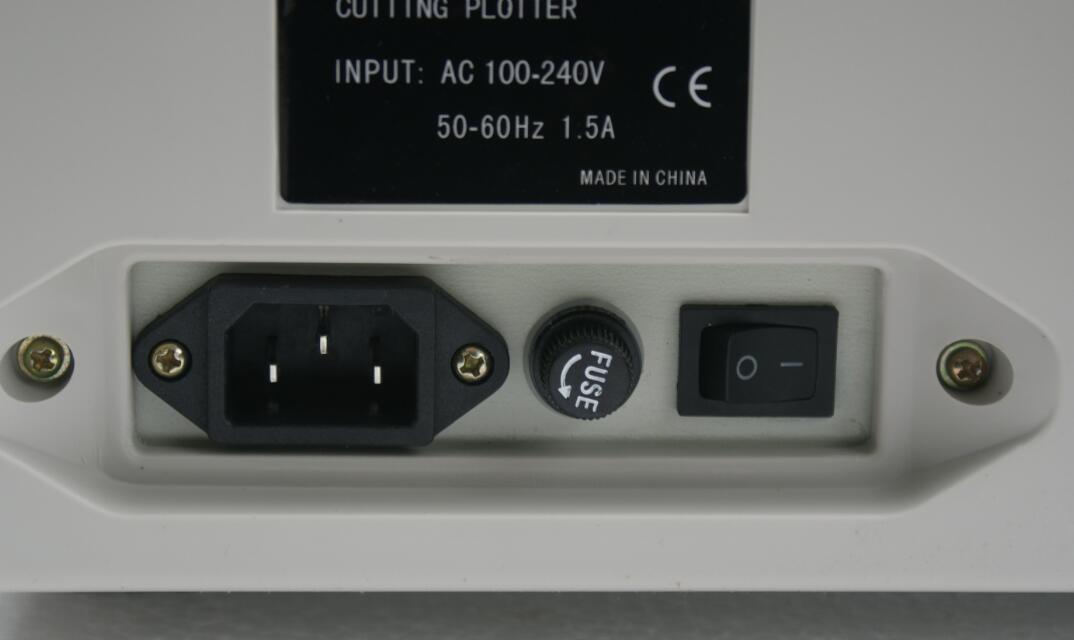

Power Supply	AC 110V~AC 240V / 50~60 Hz
Warranty	12 Months




Advantages:

1.Professionally integrated circut with high precision and high speed.In time regulation on speed and force,setup the origin point at discretion.

2.Advanced aluminum alloying structure excellent workmanship,long used life and durability.

3.Origin imported high speed stepping motor,low noise,cutting more precisely.

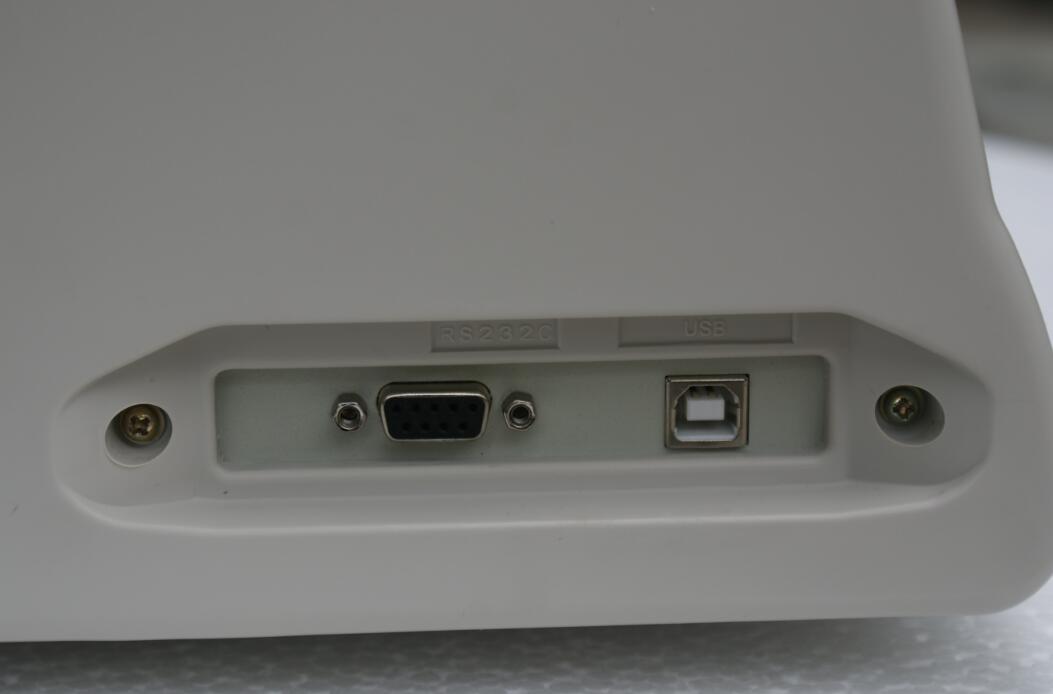

4.Serial and USB port,large memory.quick off-line.

5.Domestic popular plotting language,supporting many popular kinds of software on the market.

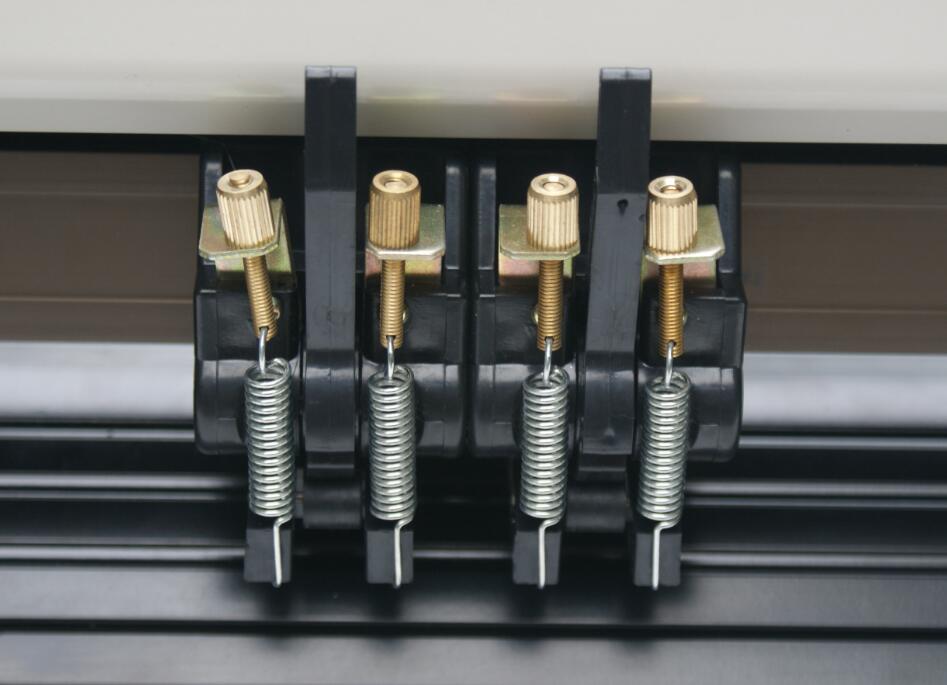

6.Unique double cutter positon,double pressing strips for processing different kinds of materials.

7. Unique blade soft landing function,easy for cutting.



Standard Accessories:

1. User Manual (CD)

2. 1 RS232 serial cable

3. 1 Power cable and 1 USB cable

4. 3 Cutting Blade

5. 1 Blade Holder

6. 1 Pen Holder

7. 1 Coat for the plotter

8. 1 Deluxe Aluminum Stand


Optional accessories:

1. Software: WinPCsign, Artcut2009, Cutmate 2.3

2. Red dot pointer
